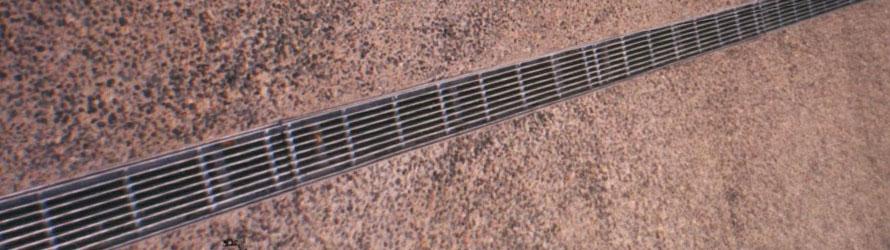

Pedestrian Close Bar Grates
Pedestrian close bar grates are made to suit a variety of applications,
but primarily where there is pedestrian access.
They provide an aesthetically pleasing look and are made standard in
a galvanised finish.
We can make these grates in either Stainless Steel (304,316) or Aluminium.
Pedestrian close bar grates have been used in walkways, backyard areas,
schools, shopping centres, parklands and in domestic driveways.
The grates have a standard gap of 9 mm between bars.
This is relevant for the grates between 100 mm and 200 mm in width.
These width grates have bars in longitudinal direction.
The grates are pedestrian and bike safe in all directions.
Close bar type grates wider than 200 mm, are made with a 13 mm gap.
These grates have load bars in transverse direction.
The grates are pedestrian and bike safe in all directions.
They can be custom made in different widths.
Pedestrian close bar grates can be supplied on their own, with frame or with a channel to suit.
Pedestrian close bar grates are also available in the angle sided self support version, Model 092.
These grates are supported by the angles on the sides of the grate, and are sometimes referred to as self support grates.
| Product code | Grate Width (mm) | Grate Depth (mm) | Bar Spacing (mm) | Product Code Angle Sided grates |
| PP TG 091 100 | 100 | 25 | 9 * | PP TG 092 100 |
| PP TG 091 150 | 150 | 25 | 9 * | PP TG 092 150 |
| PP TG 091 200 | 200 | 25 | 9 * | PP TG 092 200 |
| PP TG 091 250 | 250 | 25 | 13 | PP TG 092 250 |
| PP TG 091 300 | 300 | 25 | 13 | PP TG 092 300 |
| * Grates are 1 metre long with longitudinal bars | ||||
| Model PP TG 092 grates have 25x25x3 angle sides | ||||
Stainless Steel Pedestrian Close Bar Grates
Stainless Steel Pedestrian Close Bar Grates
Our pedestrian close bar grates can also be made in Stainless Steel
(Grade 304, 316). This version suits applications where not only
a high end finish is required, but also a strong durable product.
Products codes for Stainless Steel close bar grates are listed
in the table below.
| Product code | Grate Width (mm) | Grate Depth (mm) | Bar Spacing (mm) | Product Code Angle Sided grates |
| PP TG 091 100SS | 100 | 25 | 9 | PP TG 092 100SS |
| PP TG 091 150SS | 150 | 25 | 9 | PP TG 092 150SS |
| PP TG 091 200SS | 200 | 25 | 9 | PP TG 092 200SS |
| All grates are 1 metre long with longitudinal bars | ||||
| Model PP TG 092 grates have 25x25x3 angle sides | ||||
